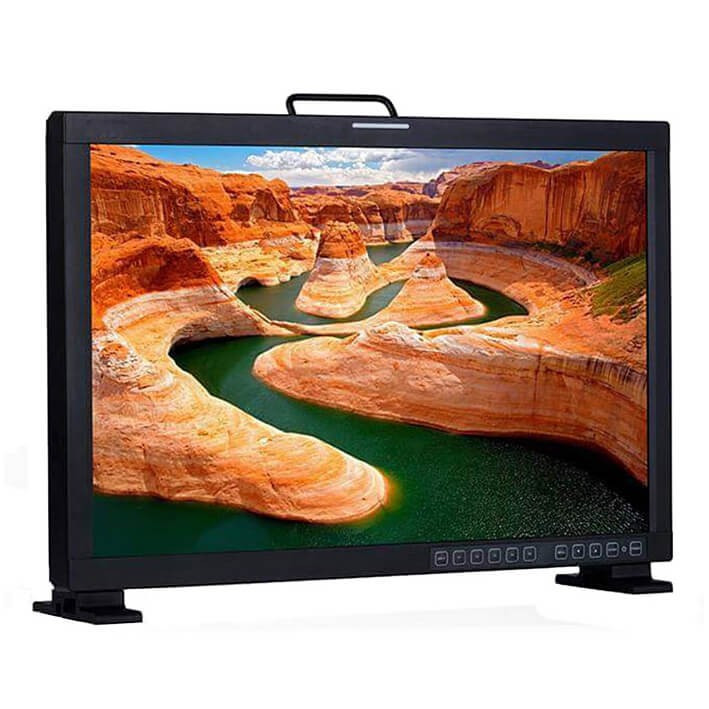

SWIT FM-24DCI 24" DCI-P3 FHD Monitor

SWIT FM-24DCI 24" DCI-P3 FHD Monitor FM-24DCI

• 24” 1920×1200 non-glaring LCD
• 10-bit LCD, 12-bit internal process
• 100% DCI-P3 Color Gamut
• 3G/HD/SD-SDI and HDMI input
• Multi-camera logs to Rec.709
• DIT user 3DLUT cube upload by USB
• Closed Caption
• Webserver IP remote control
• Waveform / Vector scope / Histogram
• 16-ch embedded audio meters
• Peaking focus assist with precision adjustment
• Exposure assist / Zebra / Blue only
• Anamorphic de-squeeze / Multiple markers
• V-mount or 4-pin XLR or AC input

24-inch 10-bit FHD LCD
100% DCI-P3 Color Gamut
The FM-24DCI monitor adopts a 24-inch 10-bit LCD panel with LED backlight, 100% DCI-P3 wide color gamut for post-production. The native resolution is Full HD 1920×1200, contrast 1000:1, and viewing angle is Horizontal: 178° / Vertical: 178°.

Input/Output Interfaces
3G-SDI, HDMI
FM-24DCI monitor supports：
3G/HD/SD-SDI input × 2
3G/HD/SD-SDI loop output × 2
HDMI 1.3 input × 1
Ethernet RJ45 × 1

SDI 1/2 PIP and PBP
FM-24DCI supports 2x SDI Pic-in-Pic or Pic-by-Pic display mode.
Under Pic-in-Pic mode, the sub input window can be set to bottom-left or bottom-right, and size adjustable.

Built-in De-log 3DLUTs
DIT user 3DLUT cube upload
FM-24DCI provides multiple De-log
3DLUTs to convert log mode to REC709 for all major cameras, includes.
ARRI LOG R709
RED RLF RG3
SONY SL2 LC709A
SONY SL3C L709A
Pana V-Log V709
Canon CinCL1 WDR
Canon CinCL2 WDR
BMD CC FILM V
BMD PC FILM V2
And supports 4x user 3DLUT cubes or calibrated 3DLUT cube upload.

Waveform / Vector scope / Audio meters
FM-24DCI supports Waveform (LUMA), Vector scope (75% or 100%), and 16-ch embedded audio meters display.
The patterns can be switched on/off individually, display position selectable.

Anamorphic de-squeeze
Enables de-squeeze the image from a camera utilizing anamorphic lens, Aspect Formats:
16x9,
4x3,
x1.3 Anamorphic De-Squeeze
x2.0 Anamorphic De-Squeeze
x2.0 MAG Anamorphic De-Squeeze

Webserver IP Remote Control
FM-24DCI supports webserver remote control by Ethernet LAN connection.
Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.

Power Input and Output
FM-24DCI provides a V-mount battery plate, and supports 12-17V 4-pin XLR input and 100-240V AC input. FM-24DCI also provide 2x USB 5V/1A output and 1x 2-pin LEMO socket to output battery power.

Specifications

LCD Performance
Size
24 inches
Display area
518.4×324mm
Resolution
1920×1080
Aspect ratio
16:10
Brightness
250cd/m2
Contrast
1000:1
Color
1.073G colors, 10 bit
Viewing angle
Horizontal: 178°; Vertical: 178°

Input
BNC ×2
3G/HD/SD-SDI input
HDMI ×1
HDMI 1.3 input
RJ45 ×1
10M/100M Ethernet input

Output
BNC ×2
3G/HD/SD-SDI loop output
USB ×2
5V / 1A power output
2-pin LEMO ×1
Battery power output

Video Format
SDI
1080p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
1035i (60 / 59.94)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94)
576i (50)

HDMI
480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

General
Input voltage
DC 12V-17V 5A, AC 100-240V, 50/60Hz
Power consumption
100W
Working temperature
0°C～+50°C
Working humidity
10%～90%
Storage temperature
-15°C～+60°C
Storage humidity
10%～90%
Dimensions
569.9×380.7×90.5mm
Net weight (main body)
9.05kg
